Darren James’ MotoAmerica Yamaha MT-07 Gallery
This post has already been read 2797 times!
Built by Robem Engineering
Photo By: Sara Spicer

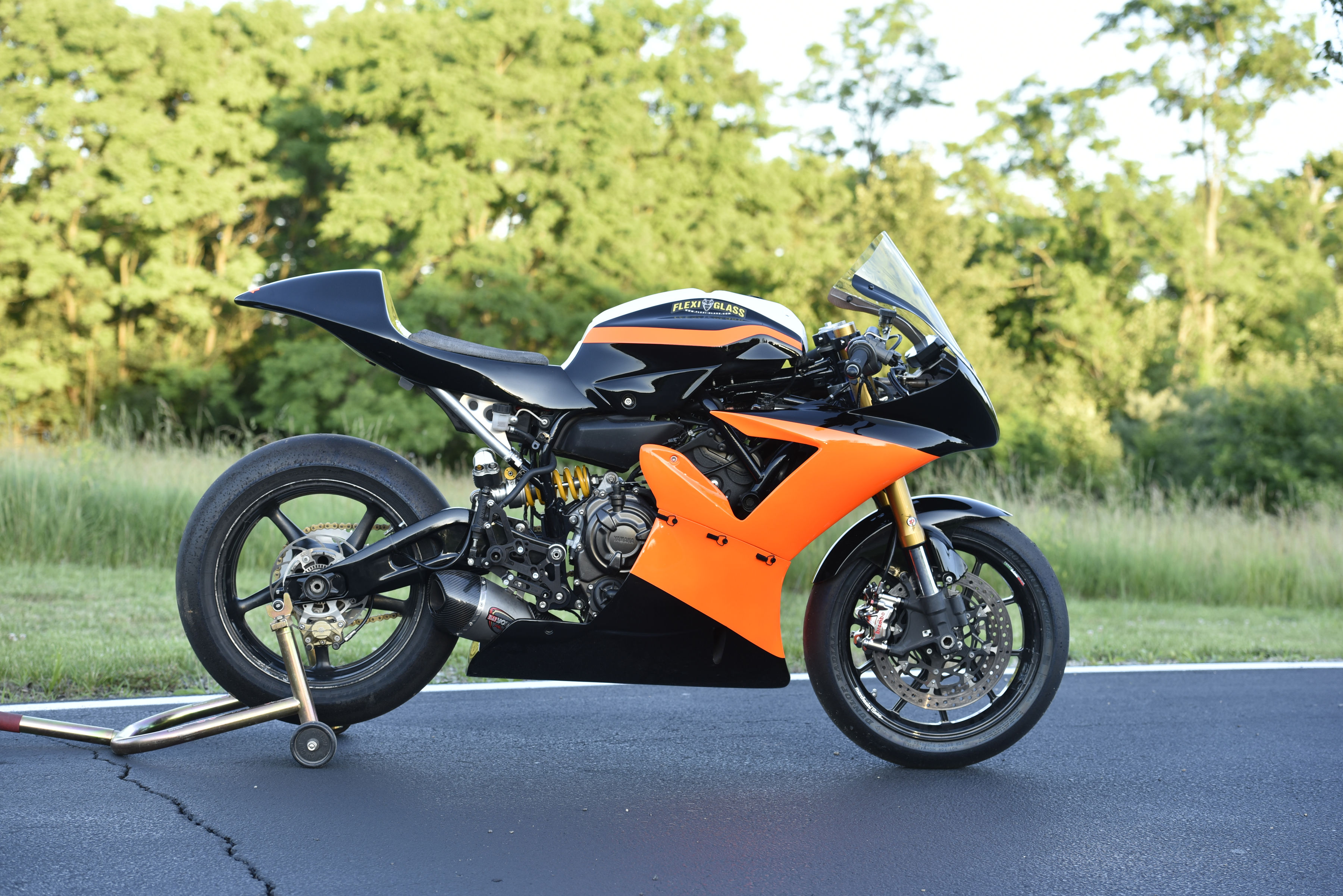

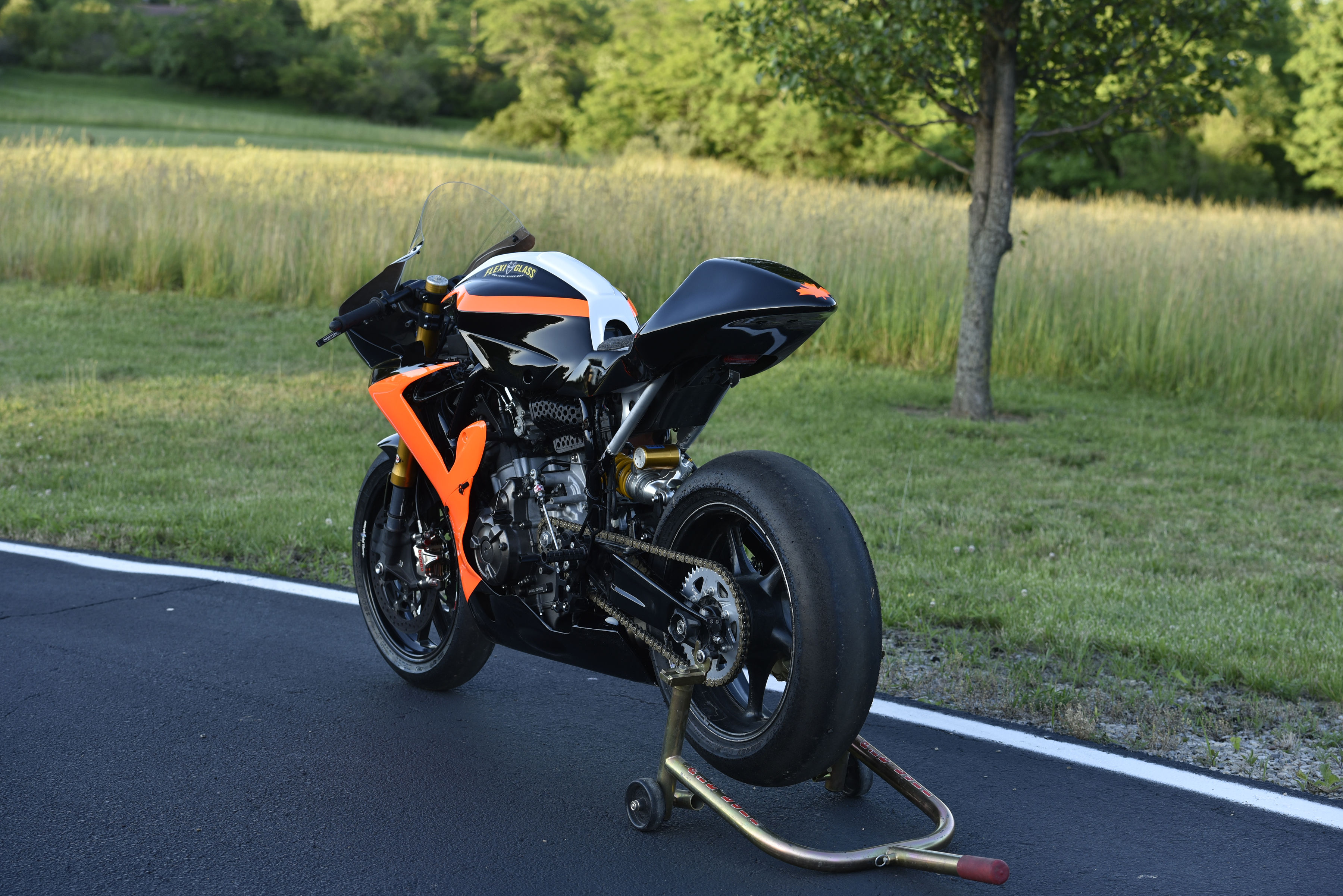

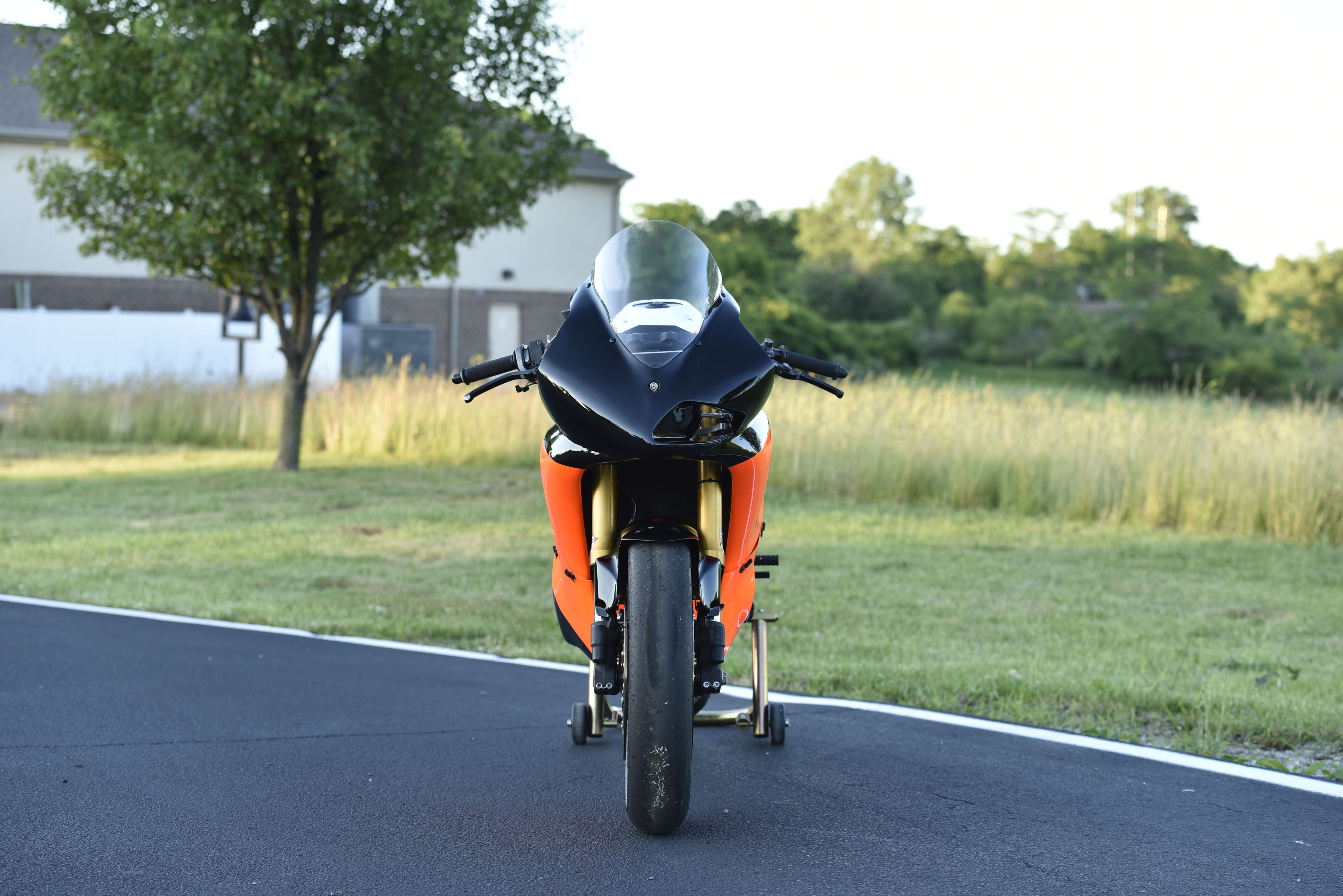

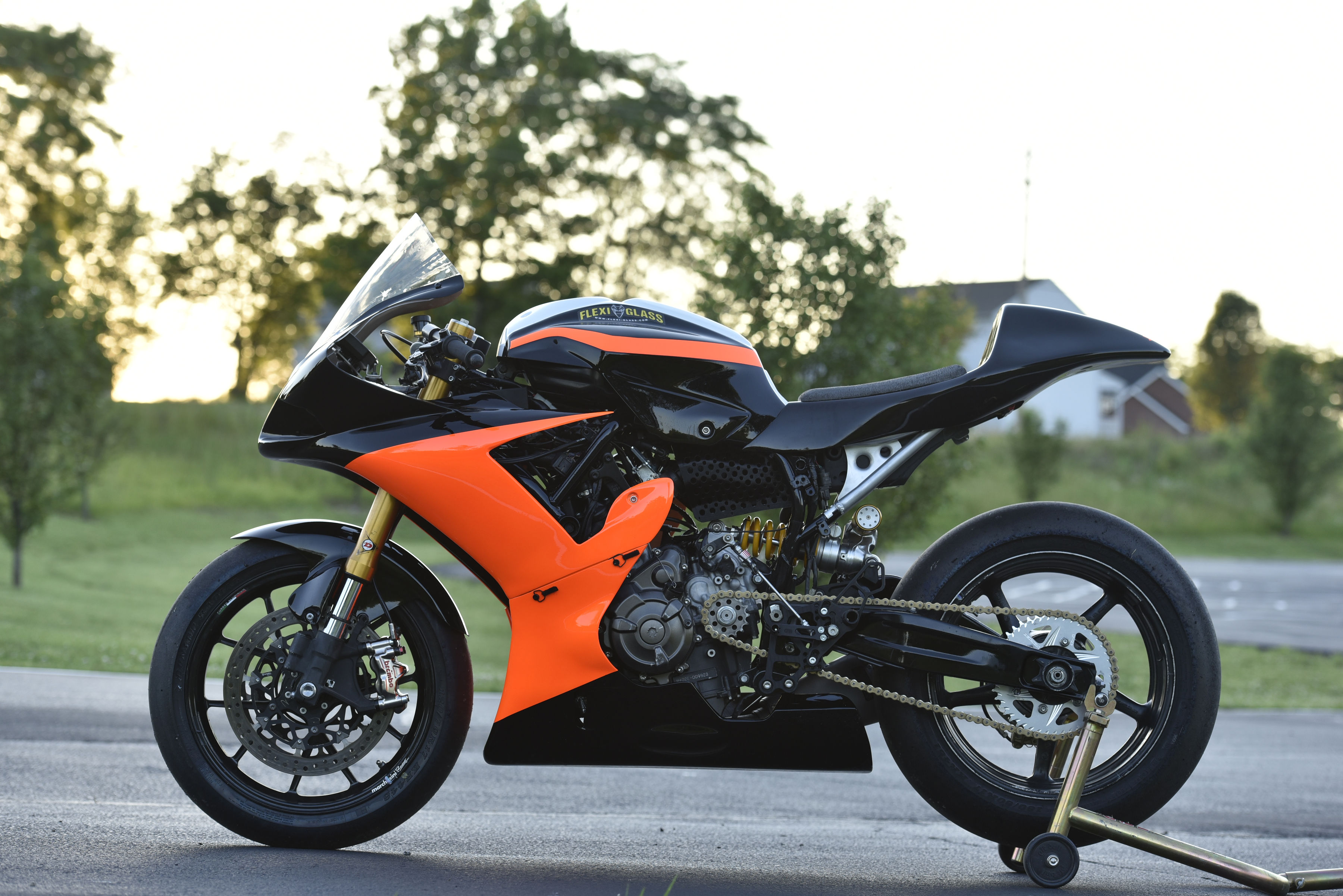

Darren James’ MotoAmerica Twins Cup Yamaha FZ07/MT07 built by Robem Enginnering. From Matt at Robem
Darren and Jon had gotten the bike to us at the beginning of March and we didn’t have a lot of time getting things together. Covid put some delays on parts but we been lucky to have made some great friendships in the industry in the short amount of time of our involvement and able to get a bike and spare motor assembled in time for round 1. Unfortunately with the border closed, Darren wasn’t able to make the round and some of the additional parts came in since then, such as the Brembo GP4-RX’s.
Dymag got the wheel to us pretty quickly I’m just reluctant to be the one to put the first marks on them fitting tires.
Trevor up at flexiglass got the bodywork to us just before the first round when Darren confirmed he would not be able to join so I pulled off the project to focus on some final bits for the SV650’s such as fitting the intakes we had outsourced to Finishline Machine and fitting the Brembo m4 calipers.
Overall I’m pretty excited about the way it turned out. I learned a lot of things I would do differently when I built my two personal FZ’s 2 years ago and had the opportunity to apply it to Darren’s bike. They were really nice bikes but you just learn how you’d improve things as you’re in the process for next time and it was nice to capitalize on that.
Suspension:
Ohlins FKR 112 Fork Cartridges

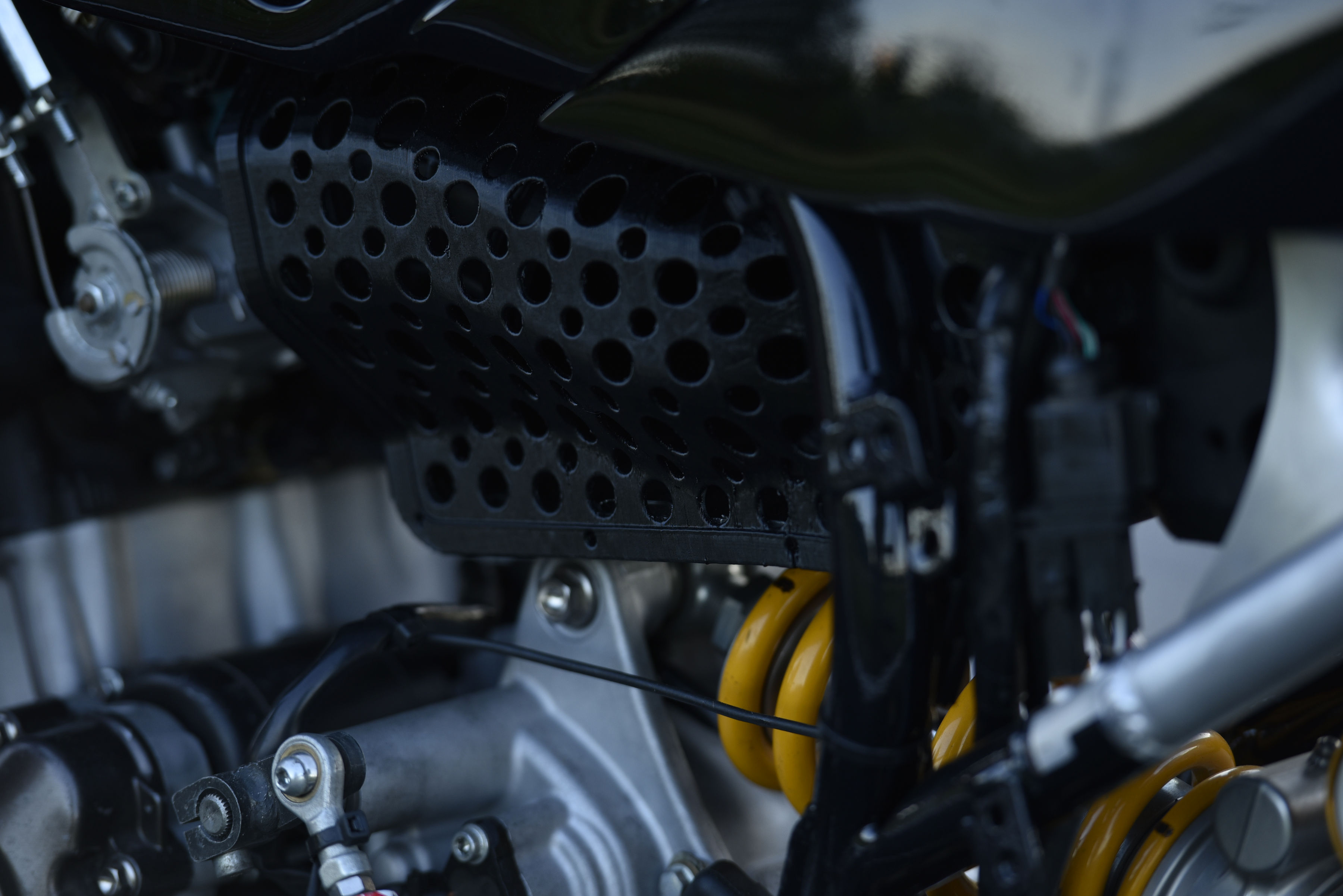

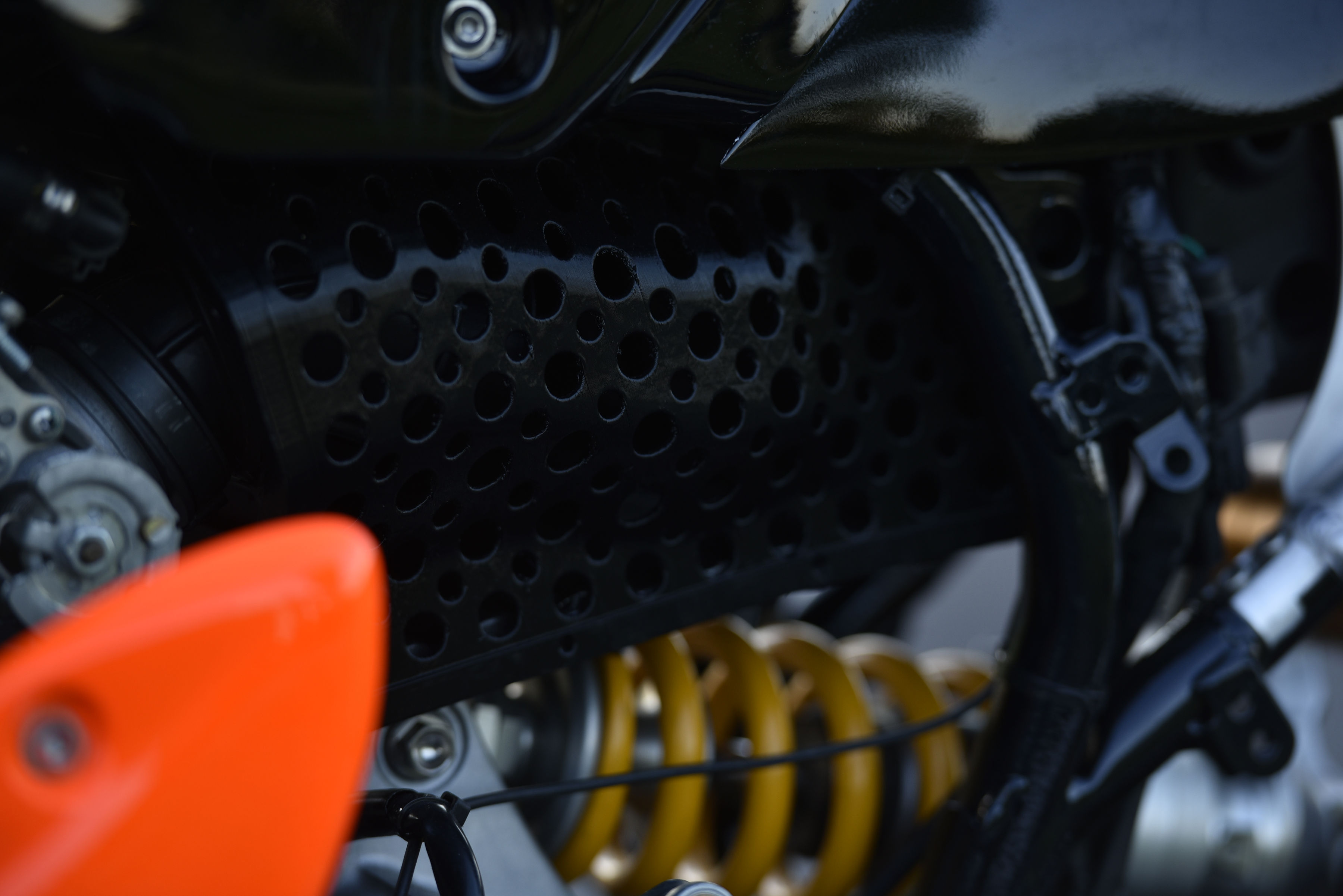

Ohlins TTX Daytona 675 Rear shock
Robem Engineering linear linkage designed with Jon Cornwell

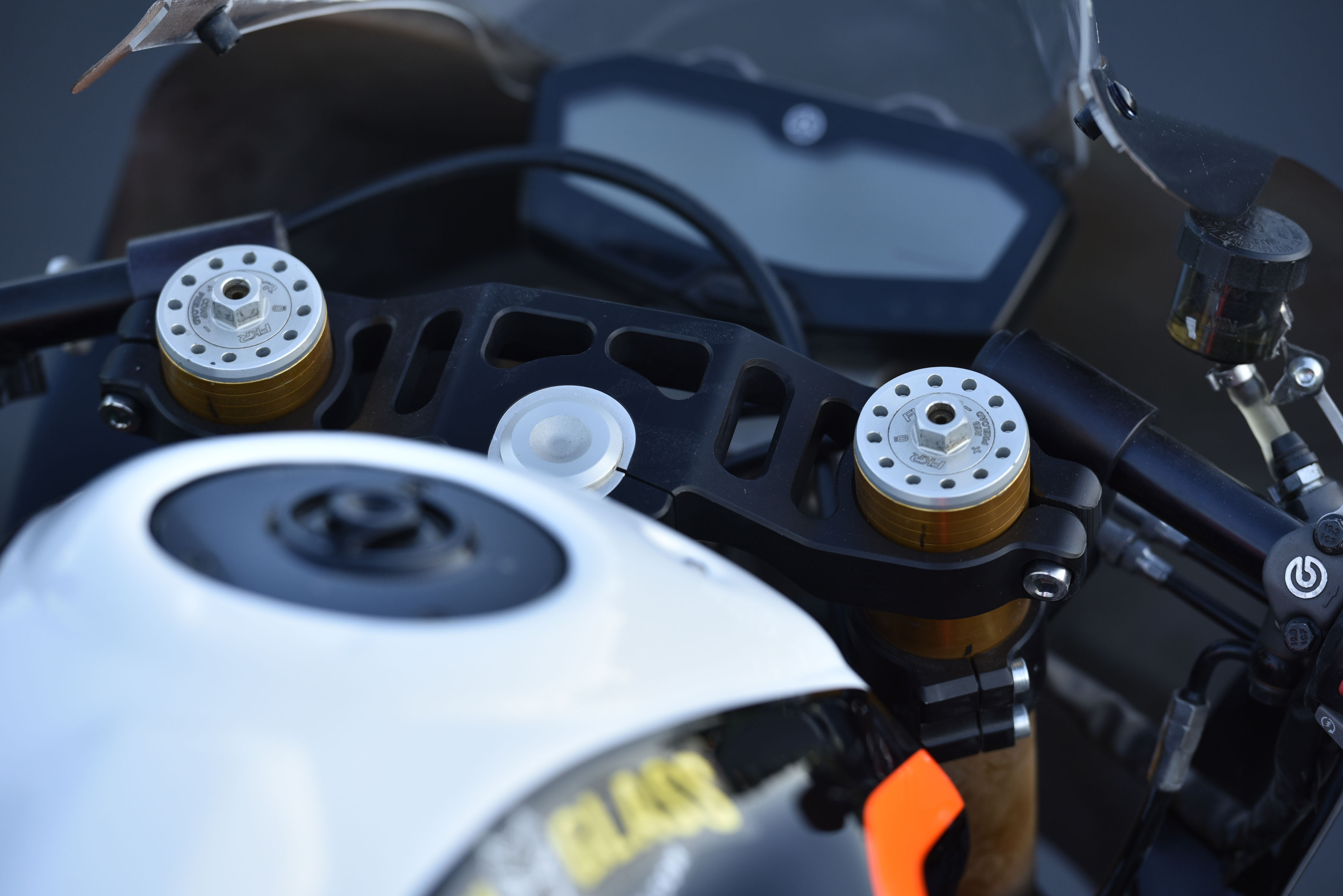

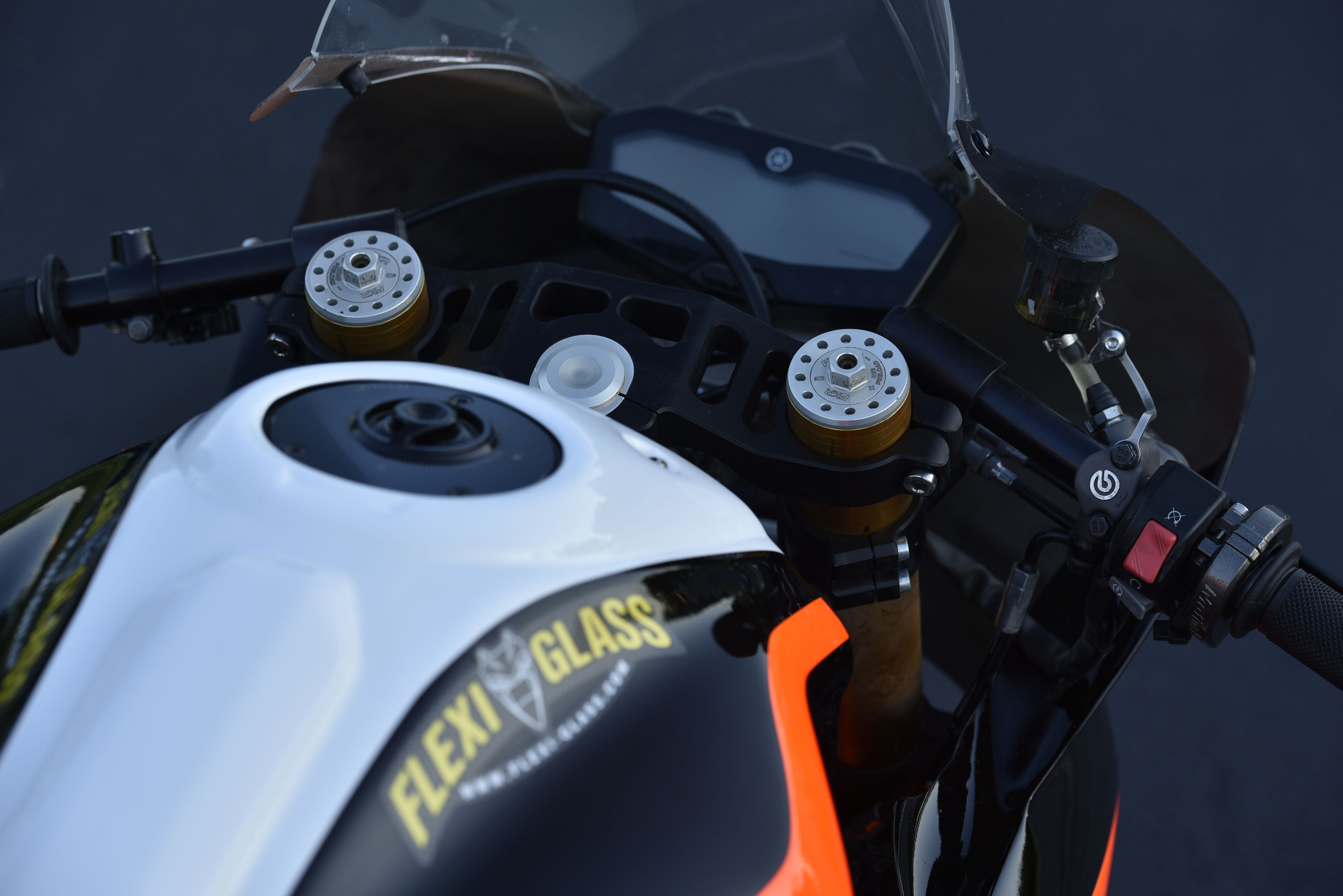

Robem Engineering FZ-07 50mm Adjustable Triple Clamps
Chassis and Controls:Detabbed and painted frame
Robem Engineering removable subframe
Robem Engineering FZ-07 Delrin Chain Buffer

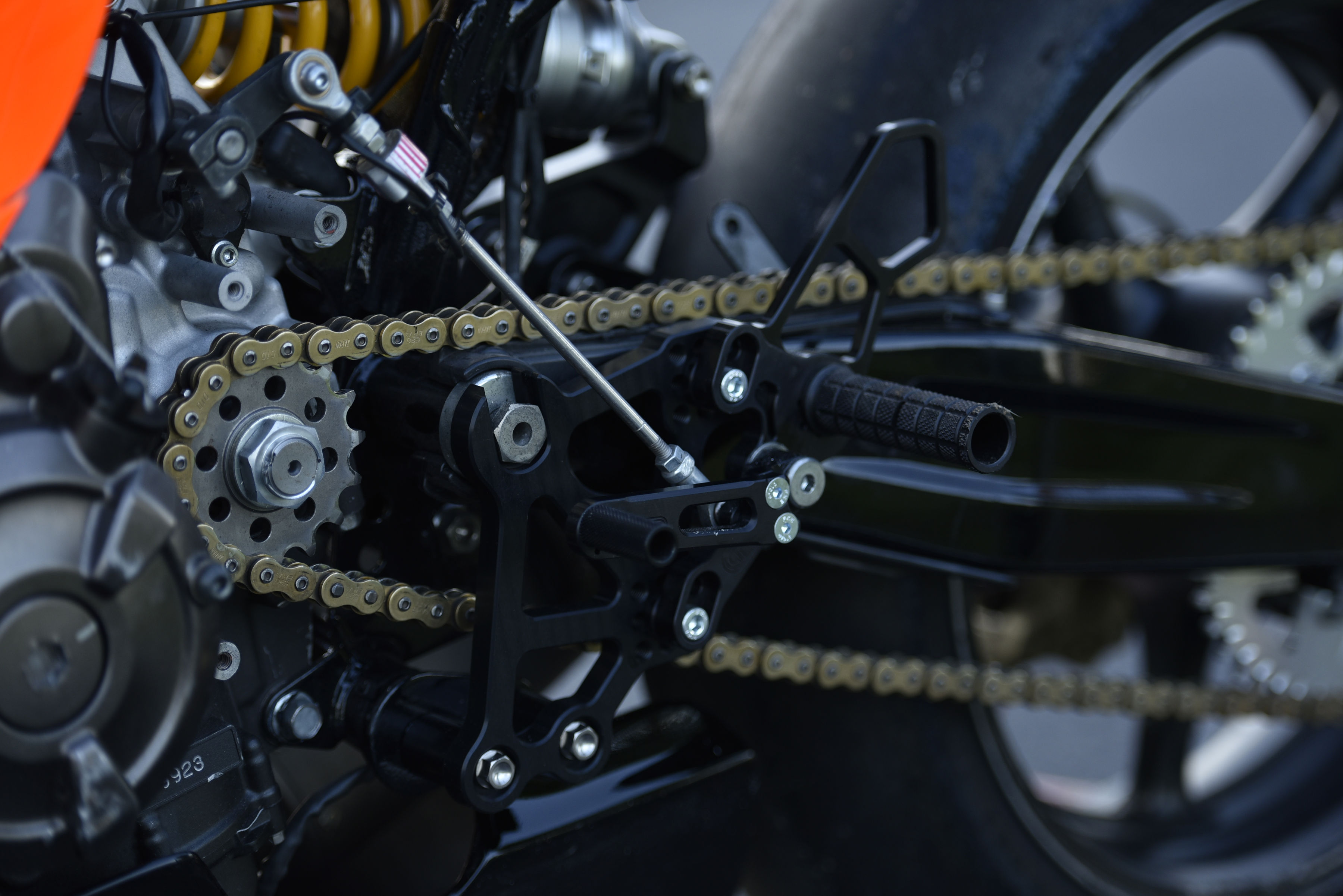

Robem Engineering FZ-07 Rear Set Risers V2.0
WoodCraft FZ-07 Rear Sets
Robem Engineering Clip ons
Motion Pro Rev2 Throttle Kit
Motion Pro grips(Not Photographed)
Roaring Toyz axle blocks
Bike fully complemented in Lightweight Racer titanium bolts
Safety:(Not Photographed)
Robem Engineering clutch and brake lever guards
BG Racing Engine covers
BG Racing Toe guard
Ohlins steering damper
Brakes:
Brembo MKII master cylinder
Brembo z04 race pads
Brembo GP4-RX 108mm front Calipers
Robem Engineering Caliper Spacers
Brembo T-Drive Rotors
Brembo P34 rear caliper
Robem Engineering FZ-07 Underslung rear caliper mount
Robem Engineering Ladybird style reservoir mount
Wheels(Not Photographed) Dymag up7x R6 wheels with custom rear spacers
Engine:
Robem engineering custom JE pistons for FZ07
Carrillo H beam Rods
R&D Motorsports fully undercut transmission
Rotating assembly balanced by Marine Crankshaft
Robem Enginereing Lightweight Starter Sprag
Robem Engineering Lightweight Flywheel
Web camshafts
Plating and CNC head porting from Millennium technologies
Yoshimura FZ-07 Head with R6 Alpha T Slip on
NGK LMAR9E-J spark plugs
Electronics:
aRacer RC2 Super Ecu
aRacer AF1 Wideband
aRacer loadcell quickshifter
aRacer Race module
Bodywork:

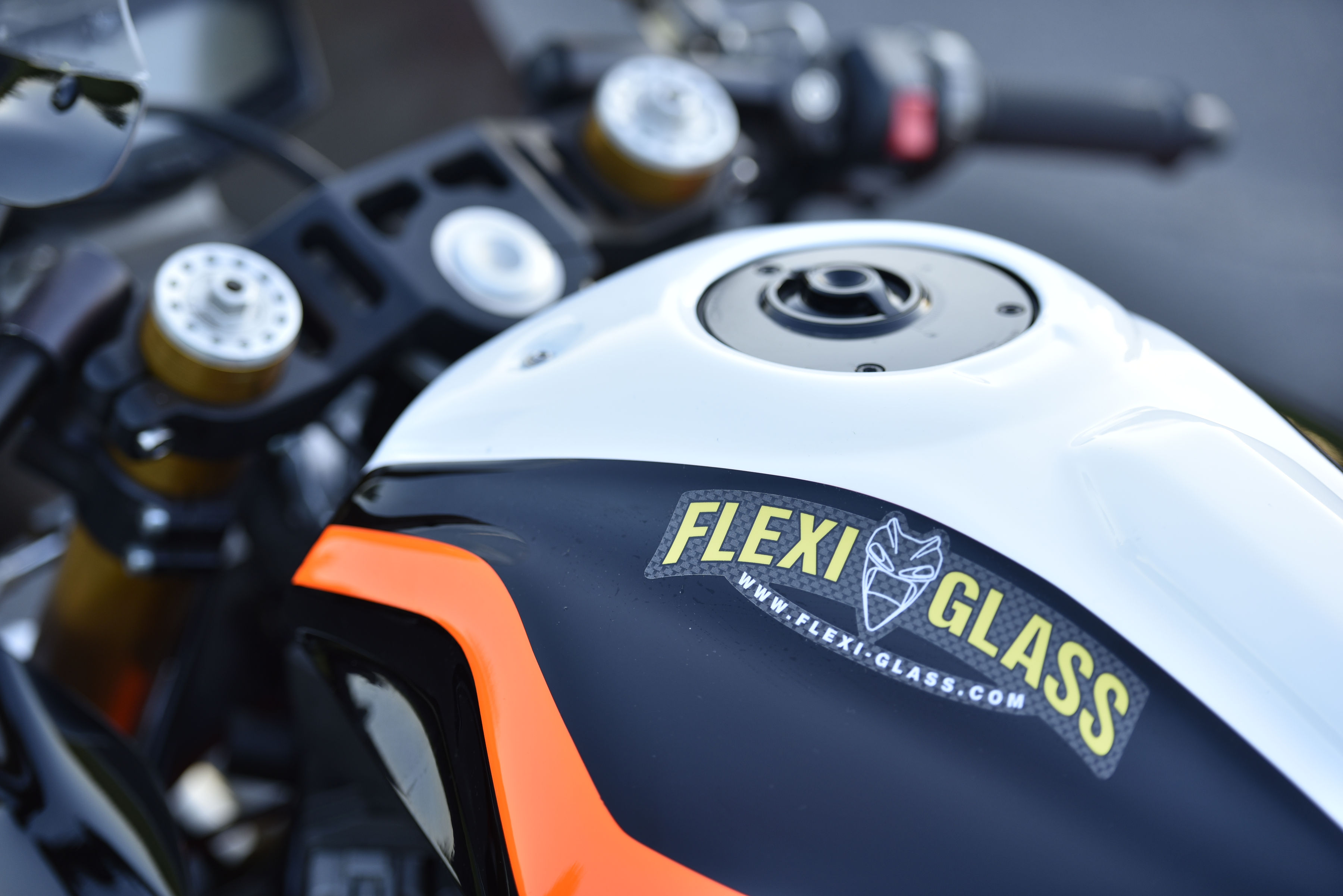

Flexi-Glass FZ-07/MT-07 Race bodywork
Robem Engineering fairing Stay for Flexiglass bodywork (Coming soon)
Robem Engineering steering neck clamp for FZ-07 (Coming Soon)
2016-2020 ZX10R double bubble windscreen
Photographs by Sara Chappell
